Discount Price Head Counter Device - MRB wireless digital people counter HPC005U – MRB
Discount Price Head Counter Device - MRB wireless digital people counter HPC005U – MRB Detail:
This is a simple wireless digital people counter that can export data via USB, Many of our digital people counter are patented products. In order to avoid plagiarism, we did not put too much content on the website. You can contact our sales staff to send you more detailed information about our digital people counters.
The scientific management of the modern market relies on data to speak. Accurate data allows implementers to grasp accurate information and data in the first time, and can make the best business tactics and strategies in the first time. So if you want to get accurate data, you need an accurate and reliable digital people counter, which can continuously, real-time and accurately count the number of passenger flow and total passenger flow data of each entrance and exit of the market, and accurately reflect the change of passenger flow. trend. HPC005U digital people counter is a professional people counting machine. It can accurately count the number of passengers entering and leaving the mall every day, and can be easily uploaded to the computer for data analysis and feedback. The installation is simple and convenient to meet the different customization needs of customers.
1. Enterprise planning: According to the area, time and location, statistical analysis of passenger flow and comparison of corresponding data can allow enterprises to adjust business planning.
2. Operational operation: Uninterrupted passenger flow statistics throughout the day, and analysis of the data makes the operation of the store more convenient and clear.
3. Marketing activities: Through the statistics of digital people counter, the time and budget of marketing activities can be accurately analyzed, and the promotion of products can also be effectively carried out.
4. Investment promotion: The passenger flow determines the value, and the layout and rent of the mall can be reasonably controlled through the accurate passenger flow, which can attract more merchants to settle in.
1. Increase the LCD display screen, the data in and out are clear at a glance.
2. HPC005U digital people counter adapts to the installation door width of 1-40 meters, and the distance is wider.
3. Large-capacity 3.6V lithium battery, longer battery life, battery life can reach 1.5 years, normal working voltage 1.5-3.6V, using AA (No. 5), more adaptable, the battery can also work normally.
4. HPC005U digital people counter can better solve the counting error caused by the change of ambient light, and it is stronger against light interference.
5. The normal working ability of penetrable glass is stronger.
6. HPC005 digital people counter can export data through USB cable.
7. The appearance design of the new counter is more concise and generous, and supports pasting or screw installation.
8. The surface can be personalized design or add LOGO to meet different requirements of customers.
9. The infrared light of HPC005U digital people counter is blocked by people or objects for more than 5 seconds, the LED in the center of the RX will flash, the shoulder screen will display the blocked pattern, prompting to remove the blocking, and the data receiver will be reported to the software. recording.
Model | HPC005U |
General | |
Power Supply | 1.5v/ 3.6v AA or lithium battery for sensors; Adaptor/ USB powered for DC |
Weight | 400g |
Dimension | 2.5 x 2.3 x 0.98″ |
Operating Temperature | -10~ 40℃ |
Color | White, or Customized |
Installation | All kinds of stores, library, Museum, Hospital, School |
Parameters | |
Operating Current for Receiver (RX) | 180μA |
Static State Current for Receiver (RX) | 70μA |
Operating Current for Transmitter (TX) | 200μA |
Static State Current for Transmitter (TX) | 80μA |
Detection Way | Infrared Rays |
Counting Way | Straightaway Shot and Shade and then Count |
Data Transmitter Period | 5 Minutes from RX to DC – customized; Immediately – DC to software |
RF Transmission Frequency | 433MHz, Encrypted |
Connection Way | RX to DC by RF Transmission, DC to computer by USB cable; |
API | Yes |
Software | |
Standalone software | For signal store, above windows 2003 |
Network software | For chain stores, above windows 2003 and SQL2005 serve. |
Installation | |
Height | 1.2meter, face to face |
Wide | ≤20 meters |
Fixed Way | Screws or Stickers |
Range from Sensors to DC | ≤40 meters |

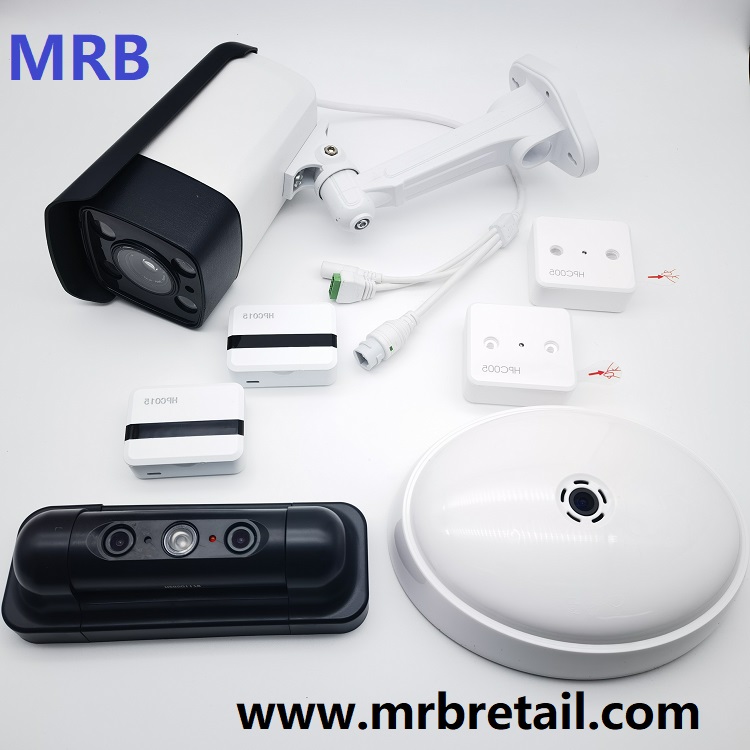

We have many types of IR digital people counter, 2D, 3D, AI digital people counter, there is always one that will suit you, please contact us, we will recommend the most suitable digital people counter for you within 24 hours.
1.HPC005U digital people counter is cost-effective and cheaper than other digital people counters
2. HPC005U digital people counter integrates the data receiver with all in 1 system, which can store detailed incoming and outgoing records.
3. HPC005U wireless people counter can collect and store data wirelessly. It is suitable for installation where there is no network and power supply.
4. HPC005U digital people counter supports 485 protocol and can be directly integrated with other devices and software
5. HPC005U digital people counter is equipped with micro USB interface, which can be directly powered by external power supply
6. HPC005U digital people counter can connect the computer with USB data cable and directly export data to the computer.
If you have other counting needs, we, as a professional automatic people counter manufacturer and supplier, we can provide you with different counters at good price and cost, such as counting cars, we have vehicle counters, counting passengers, we have passenger counters, and in terms of technology, we have 2D, 3D, AI, IR, etc.

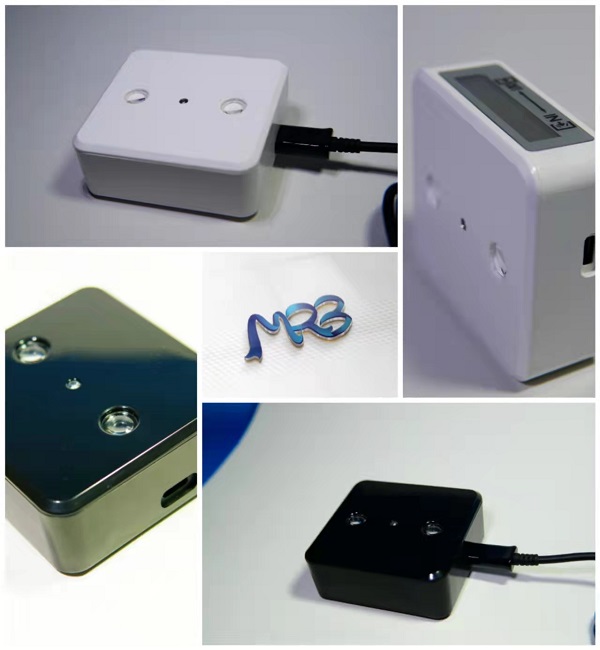

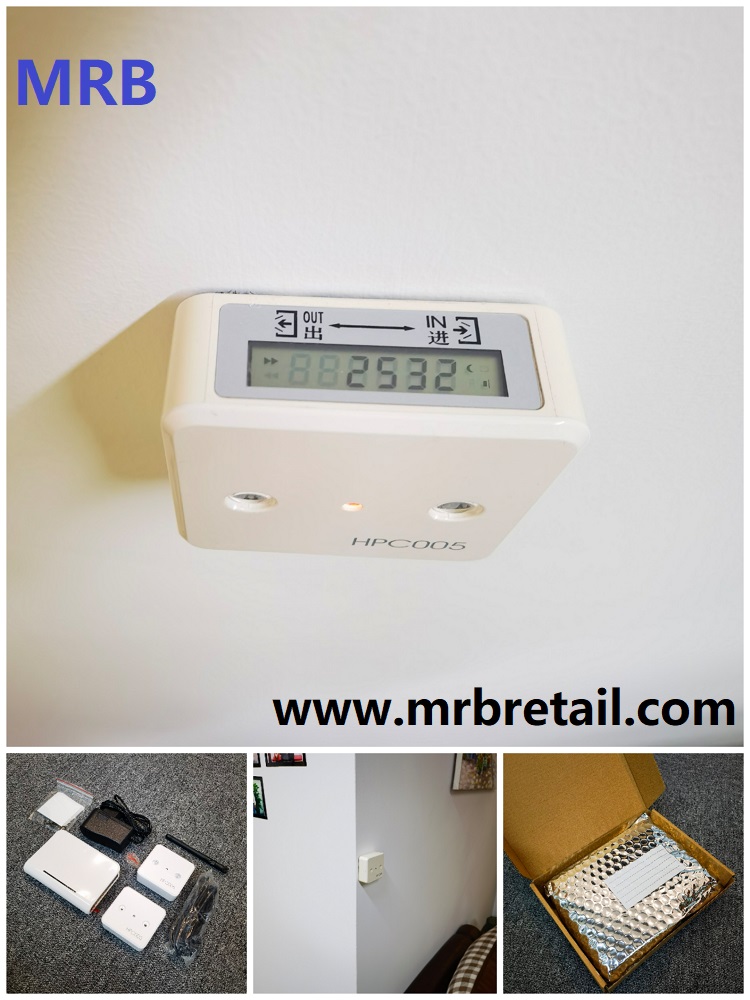

Product detail pictures:
