MRB HPC088 Automatic Passenger Counting System for bus
Many of our passenger counting system are patented products. In order to avoid plagiarism, we did not put too much content on the website. You can contact our sales staff to send you more detailed information about our passenger counting system.
HPC088 passenger counting system is a high-precision (98%+) passenger counting product for bus passenger automatic counting based on binocular stereo vision technology and intelligent video analysis technology. The binocular camera of the passenger counting system designed with human-like engineering design collects real-time passenger motion information in the door range, and quickly calculates the 3D data of the target passenger through the image processor, including the target passenger's height\shoulder width, etc., which does not conform to human characteristics Automatic filtering of target elements (such as trolleys, belongings, etc.) can achieve the same high-precision detection regardless of whether it is in the sun or in a dim environment.
HPC088 passenger counting system has RS232, RS485, two kinds of data interface, it is very convenient to interface with third-party systems to realize data interaction.
The binocular camera of the passenger counting system adopts human eye engineering design, built-in two CCD cameras to collect 3D images of the target, and collect real-time video streams at a speed of 25 frames per second. The passenger counting system has anti-shake function and is very suitable for use in the bus environment. It can automatically light according to the environment The intensity of infrared supplement light can be used normally during the day or night.
The image processor of the passenger counting system has a built-in high-performance graphics dedicated DSP processor, which processes the video stream information of the two binocular cameras in real time according to the preset graphics algorithm, calculates the real-time number of passengers on and off the two doors of the bus, and communicates with the third party through RS232 and RS485 interfaces The system conducts data exchange.
The image processor can be built-in GGM module (optional), which can realize the GPS positioning of buses and 3G\4G network data transmission, so the passenger counting system can form a complete data collection, data transmission, vehicle positioning function, and rapid deployment of applications.
The passenger counting system processor is installed in the hidden place of the ceiling of the bus. If the GGM module is used, the GPS\GPRS antenna must be placed in a position where the signal is well received.
We have many types of IR passenger counting system, 2D, 3D, AI passenger counting system, there is always one that will suit you, please contact us, we will recommend the most suitable passenger counting system for you within 24 hours.
HPC168 automated passenger counting system for bus can provide scientific and effective data support for route planning, operation scheduling, ticket management, etc. of the bus management system. The passenger counting system has improved the economic benefits of bus operating companies, improved the quality of public transportation services, and increased passenger satisfaction.
HPC168 automated passenger counting system for bus adopts the most cutting-edge technology and deep learning algorithm, which can accurately count and analyze the current passenger flow situation. The passenger counting system has strong adaptability, and the accuracy rate is not affected by the environment and passenger flow density. In a complex passenger flow environment, the statistical accuracy is still as high as 95%.
While providing real-time, intuitive and accurate passenger flow data for bus operation management, the passenger counting system has greatly improved the work efficiency and effectiveness of managers.
The data interfaces provided by HPC168 automated passenger counting system for bus are as follows:
1. Video output interface
The passenger counter can be connected with the vehicle display to visually display the result of passenger counting. The passenger counter can also be connected with the vehicle video recorder to save the dynamic video of passengers getting on and off the bus in real time.
2. RJ45 network interface
Connect with the passenger counter through the RJ45 interface, you can use the client tool program to view and set the working status and operating parameters, etc. Through the RJ45 network interface, the passenger counter can also upload the passenger flow data to the designated server in real time.
3. RS485 interface or RS232 interface
Passenger counter provides single-channel RS485 or RS232, which can be used by third-party devices for data calls, custom baud rate and communication ID code.
4. Door switch signal
Passenger counter can receive door switch signal input in the voltage range of 8-36V. Passenger counter stops counting after the door is closed and starts counting automatically when the door is opened.
1. Through the statistics of the number of passengers in specific time periods, the frequency of vehicle distribution in each time period can be reasonably arranged to avoid empty running or overloading of vehicles.
2. By counting the number of people getting on and off at each station, the number and time of bus stops at different stations can be reasonably scheduled.
3. Through the analysis of passenger flow data in various regions, reasonably arrange bus routes and provide data support for route planning.
4. Accurate passenger flow data can help managers grasp the ticket situation and avoid staff violations.

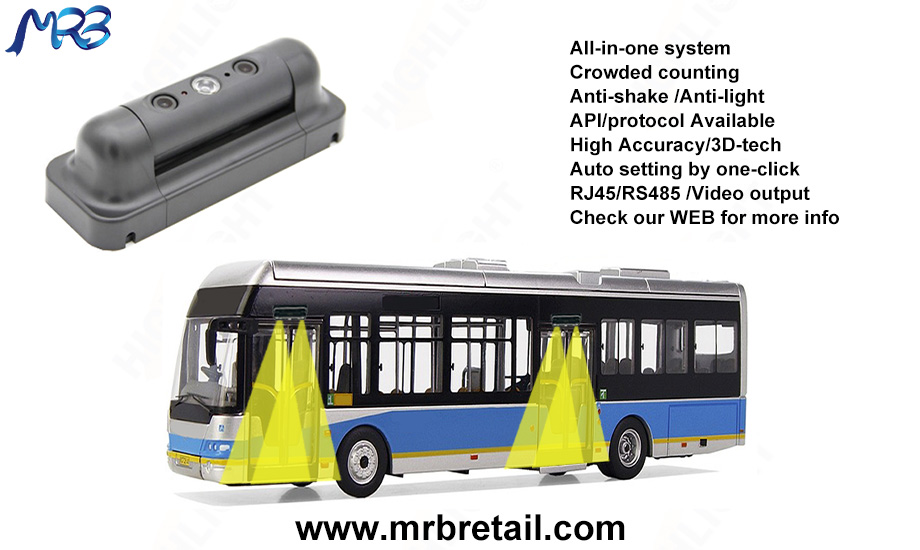

Please click the below picture for more product info of HPC168 automatic passenger counting system for bus.
