Open the demo tool software, click "tag type" at the top right of the main page to select the size and color type of E Ink price tag.

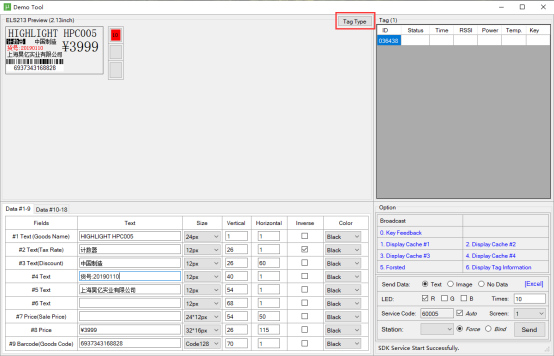

The location of the "tag type" button on the main page is as follows:
After clicking "tag type", the contents are as follows:
The dimensions of E Ink price tag are 2.13, 2.90, 4.20 and 7.50. The parameters of the four e ink price tags are as follows:
The screen of E Ink price tag has three color specifications:
Black white screen , Black red white , Black yellow white screen
After determining the size and color of E Ink price tag, you need to set the layout.
You can adjust commodity information during layout settings, such as commodity name, inventory, commodity number, etc.
There are four fonts for e ink price tag: 12 pixels, 16 pixels, 24 pixels and 32 pixels.
Set the position coordinate information range from (X: 1, Y: 1) to (X: 92, Y: 232).
Note: the program lists nine commodity information for the convenience of demonstration. In fact, it is not limited to displaying only nine commodity data.
After setting the layout, you can transfer data.
Then click the send button, and the program will send the data to the cache screen of the specified e ink price tag.
Note: you must select an online and idle base station ID. If the base station is busy, please try again later.
Tip: if you find that the failure probability of E Ink price tag sending is very high, please confirm with the sales personnel or technical support personnel whether the time of base station and tag configuration is consistent; If you select 7.5-inch e ink price tag and send a bitmap image, due to the large amount of data, e ink price tag will wait about 10 seconds to refresh the screen.
Please click below link for more information: https://www.mrbretail.com/esl-system/
