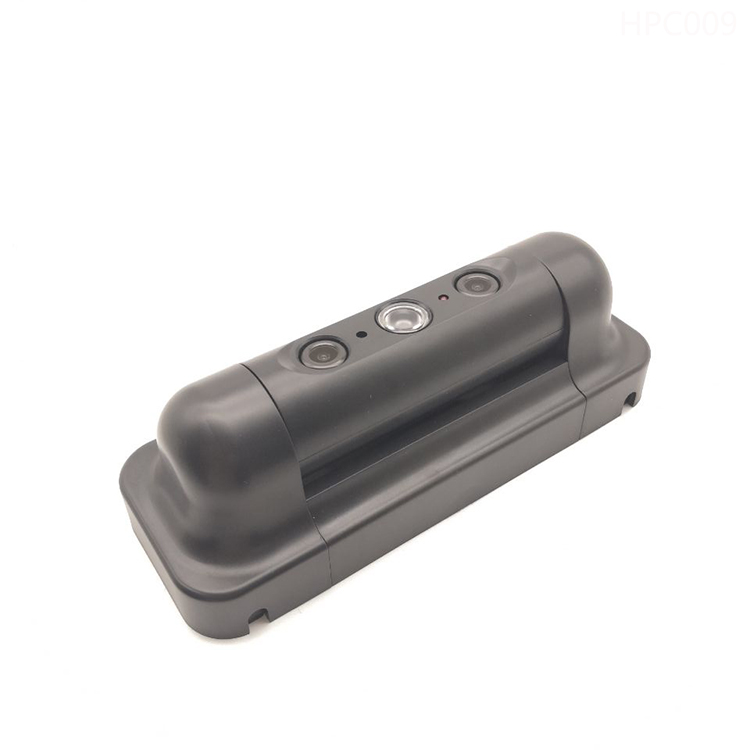

HPC009 passenger counting system binocular passenger flow counter is commonly used in public transport equipment. It is necessary to select the equipment lens according to the actual installation height. If you need to buy, you need to provide the information of installation site height and detection width to ensure that the equipment can be used normally.
The power supply and other external lines of HPC009 passenger counting system equipment are located at both ends of the equipment. Usually, the side cover is used to protect it, and the cover can be easily opened with a screwdriver. The interface also includes power line interface, RS485 interface, rg45 interface, etc.
The lens of HPC009 passenger counting system adopts a rotatable mode, which can tilt the angle as required. After the angle is adjusted, the lens screws need to be tightened to prevent the lens offset from reducing the measurement accuracy. The HPC009 passenger counting system uses the top view angle to measure and count the passing people, so please try to ensure that the lens of the equipment is vertically downward to obtain a more ideal statistical effect (the numbered side of the equipment faces the interior or interior of the vehicle during installation).
After the HPC009 passenger counting system equipment line is installed, let the line protrude from the side hole of the cover to ensure that the equipment can be parallel to the installation wall.
Please click the below photo for more information:
