HPC168 is an automatic passenger counting system dedicated to Bus. Many of our passenger counter are patented products. In order to avoid plagiarism, we did not put too much content on the website. You can contact our sales staff to send you more detailed information about our passenger counter.
The HPC168 passenger counter has a built-in Huawei dedicated video high-performance processor, and uses the main developed dual-camera depth algorithm model to dynamically detect the cross-section, height and movement trajectory of the passenger target, so as to obtain high-precision real-time passenger flow data.

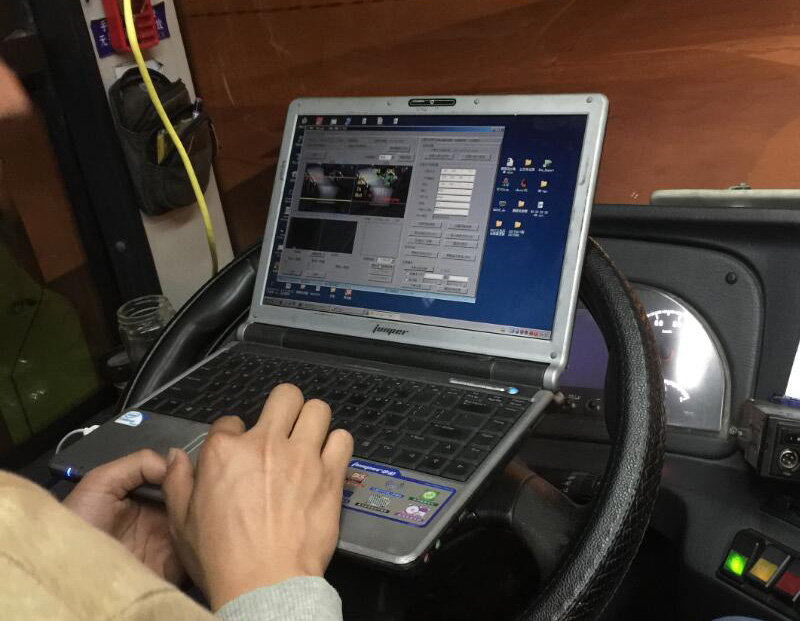

The HPC168 passenger counter adopts an integrated design, which integrates the depth camera and the computing main control board, which minimizes the interference of camera image information and minimizes the difficulty of construction and wiring. One-click debugging mode can quickly complete HPC168 Passenger counting Collection of environmental parameters required by the system without the use of other equipment terminals.

MRB Passenger counter provides RS45 or RS485 interface for data exchange and sharing with third-party devices, which is very convenient for in-depth data development.
The camera of the HPC168 automatic passenger counting system can be adjusted from 0 to 180 degrees to meet the installation requirements of all passenger car environments. The built-in wiring method makes the HPC168 automatic passenger counter perfectly integrate with the passenger car environment. Commonly used in subway, bus, passenger car and other public transportation passenger automatic counting applications.

The main features of HPC168 automatic passenger counting system:
1. Easy to install, can support 180° installation, strong environmental adaptability.
2. Strong environmental adaptability, built-in image stabilization algorithm.
3. Counting accuracy is not affected by passengers passing side by side, cross-passing, blocking passage, and not affected by passenger’s body shape, clothing color, hair color, hat and scarf, etc.
4. Algorithm correction function, adaptive lens angle, focus information, allowing a certain angle of tilt with the horizontal direction;
5. It has strong expandability and can be installed according to the number of doors;
6. Not affected by people’s shadows or shadows, not affected by seasons and weather, and not affected by external light. Automatically start infrared supplement light at night with the same recognition accuracy;
7. The target height can be restricted, and the error of the passenger’s baggage can be filtered;
8 The door opening and closing state of the bus is a trigger condition, counting starts when the door is opened, real-time statistics, and the door is closed and stops counting.

HPC168 automatic passenger counter provides various data interfaces:

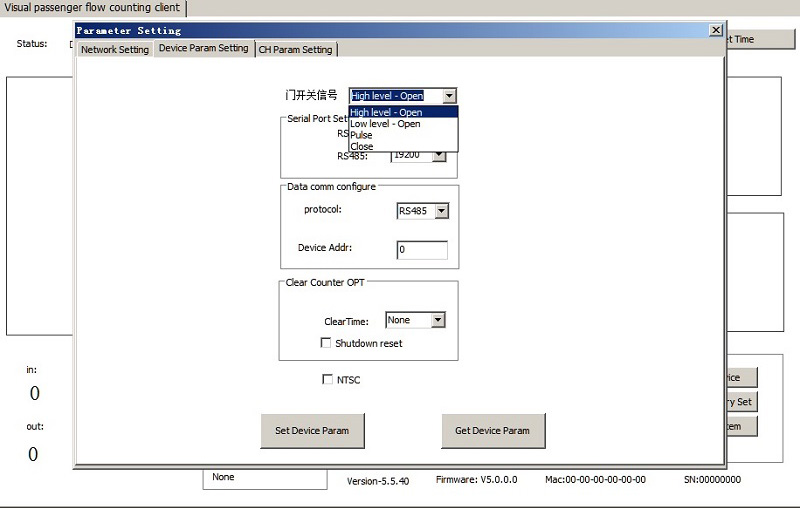

1. Provide one RS485 or RS232 for third-party equipment to call data, and the baud rate and communication ID code can be customized.

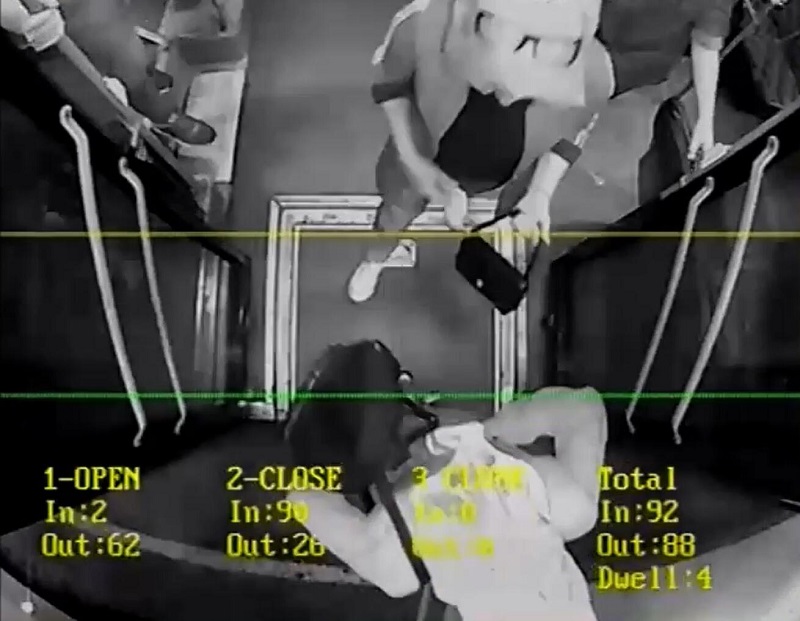

2. It has a video output interface, which can be connected to the on-board display for intuitive display of passenger counting results; it can also be connected with Mobile DVR to save dynamic videos of passengers getting on and off and counting in real time.

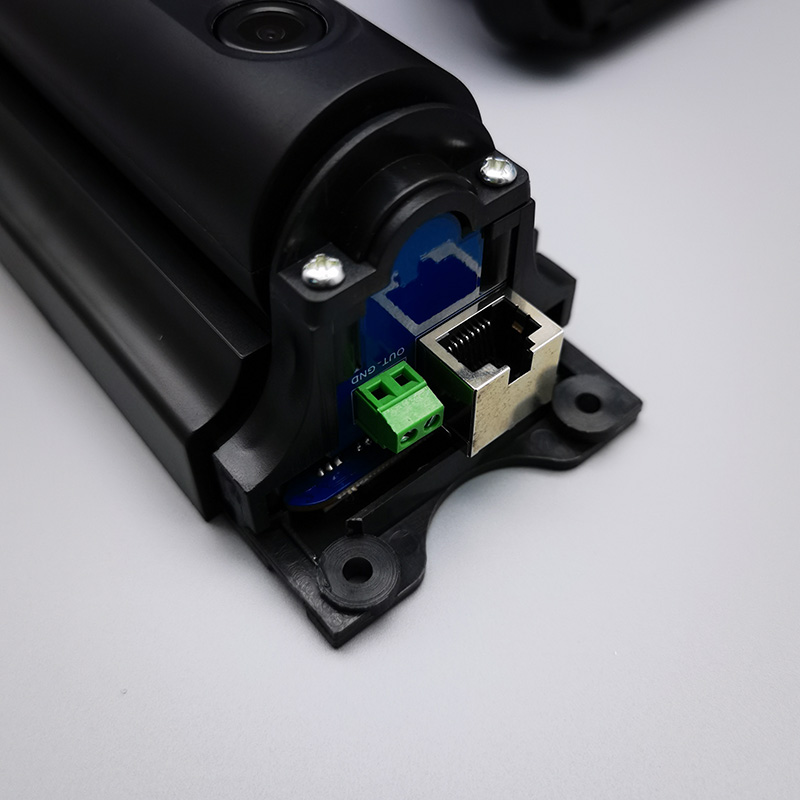

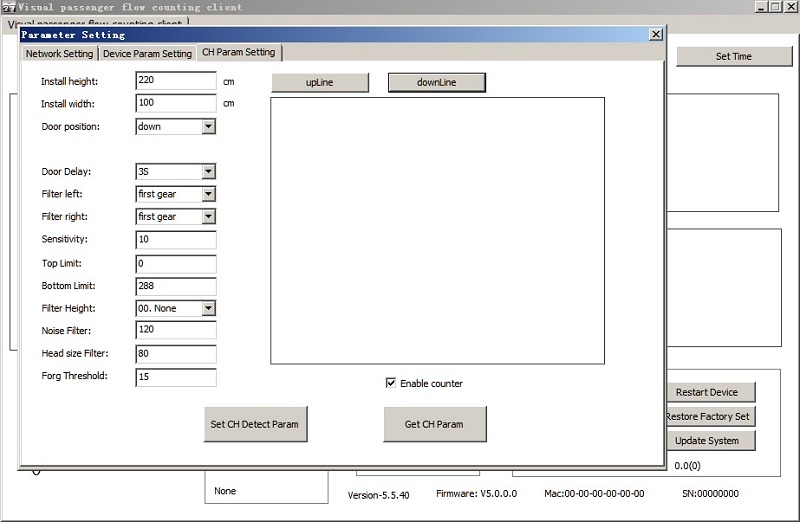

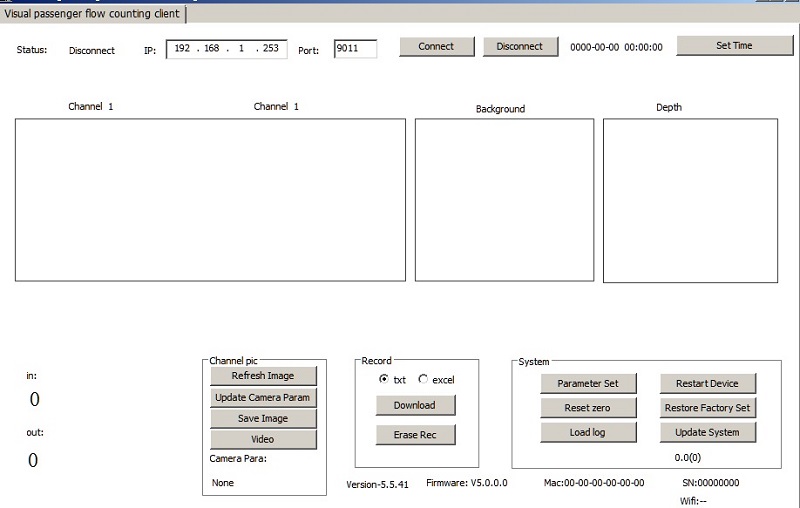

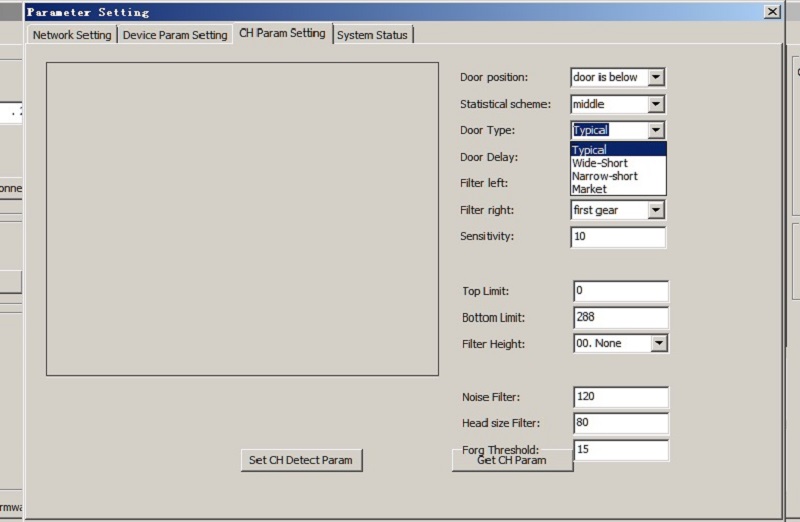

3. RJ45 network interface, the client tool program is connected with HPC168 passenger counter through RJ45 interface to view or set the working status and operating parameters. At the same time, HPC168 passenger counter submits passenger flow data to the designated server in real time through the RJ45 network interface.

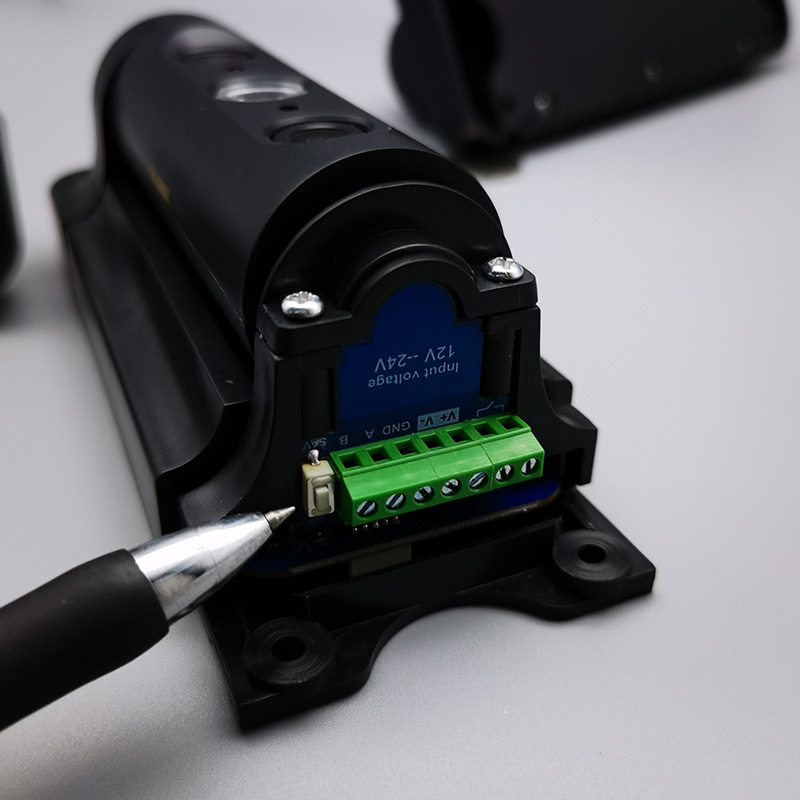

4. It can receive the door switch signal input in the voltage range of 8-36V. The HPC168 passenger counter stops counting when the door is closed, and automatically starts counting after the door is opened.

We have many types of IR passenger counter, 2D, 3D, AI passenger counter, there is always one that will suit you, please contact us, we will recommend the most suitable passenger counter for you within 24 hours.
